This one was very informative. I ended up
developing a workflow to make intersecting fillets doable using
surfacing tools. One of the boolean operations for this model took
multiple hours to compute!For a few, months now, I’ve been working on and off on completing the SolidWorks ModelMania Challenges using FreeCAD. I was actually able to pretty much ccomplete all of the challenges, with a few compromises of course.It’s all up on github (github.com/alexneufeld/FreeCAD_modelmania), with a readme in each years subfolder that includes some nice images. I did this mostly as a way to do some fun modelling practice, as well as get familiar with a basic FEA workflow.
I also used the LinkStage3 save as directory feature to make version control with git smoother. I really liked how this works, hopefully that feature makes it into the main branch eventually.

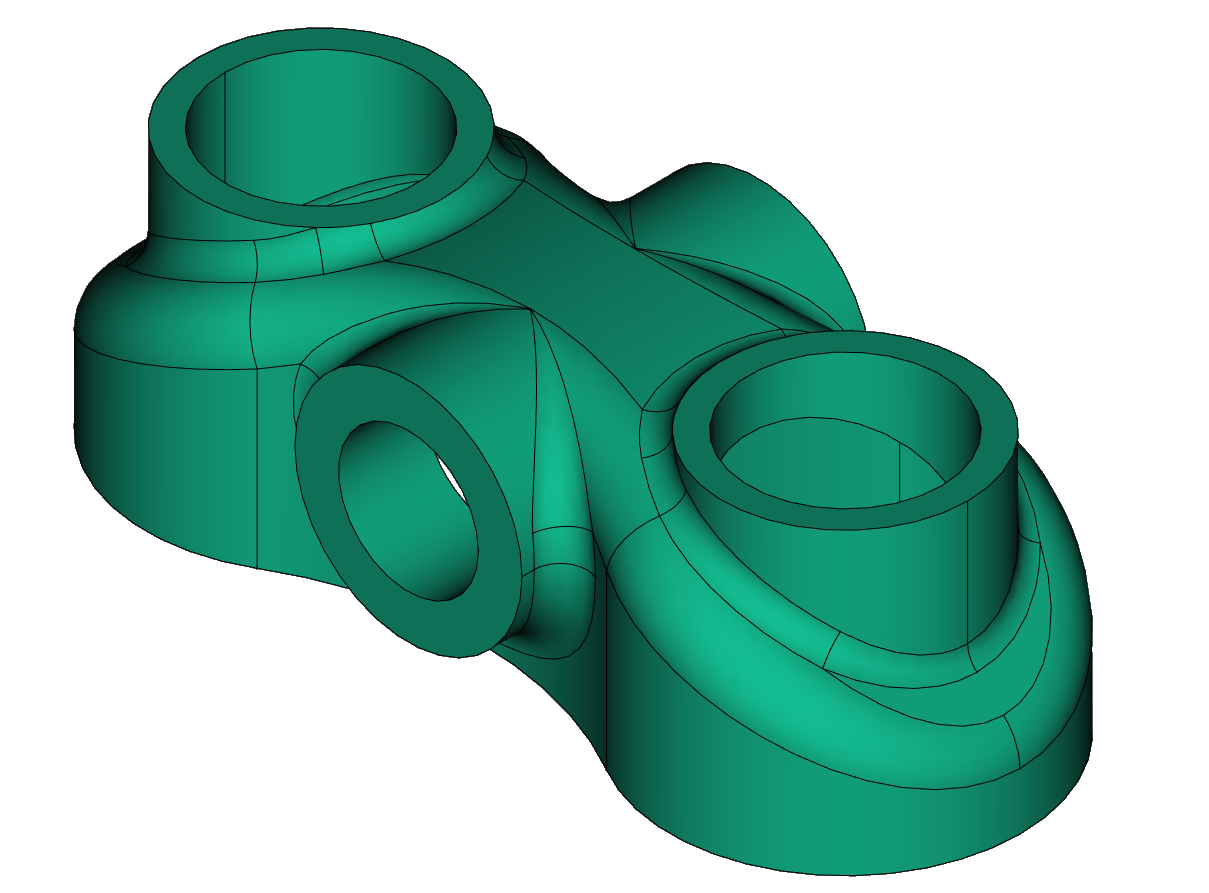

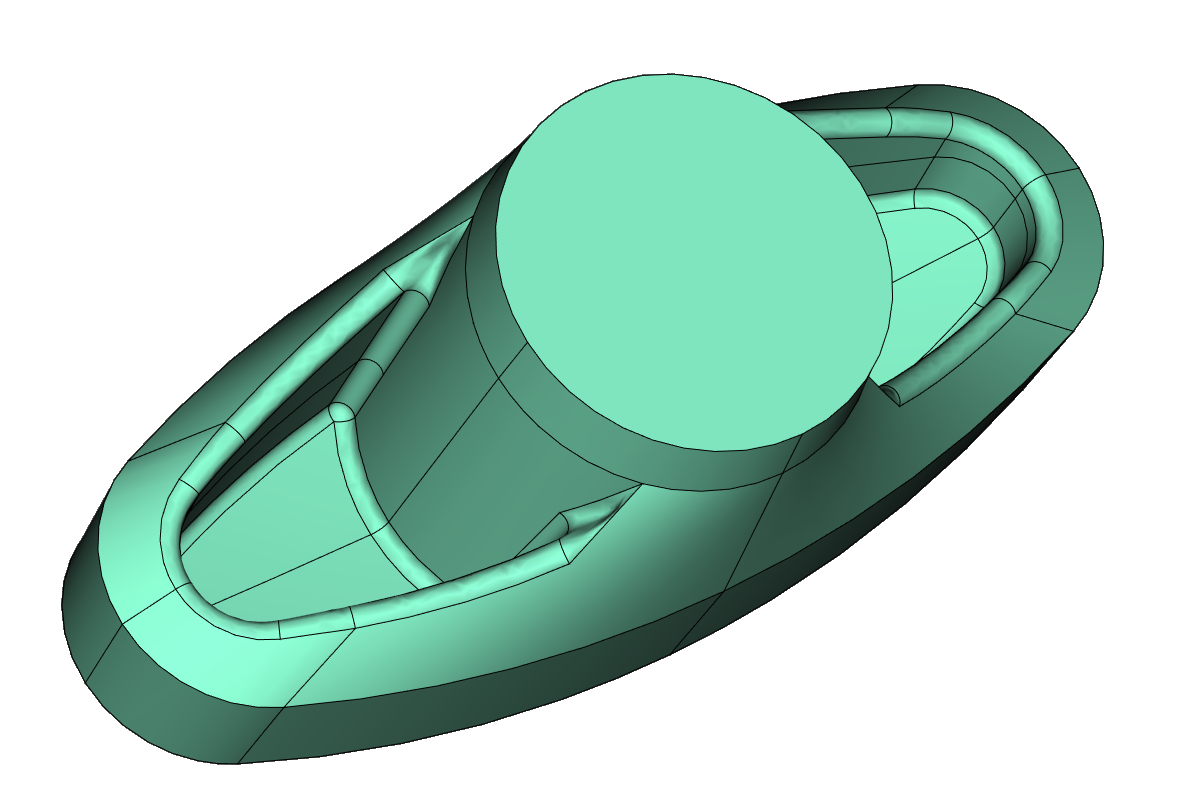

This one was very informative. I ended up
developing a workflow to make intersecting fillets doable using
surfacing tools. One of the boolean operations for this model took
multiple hours to compute!

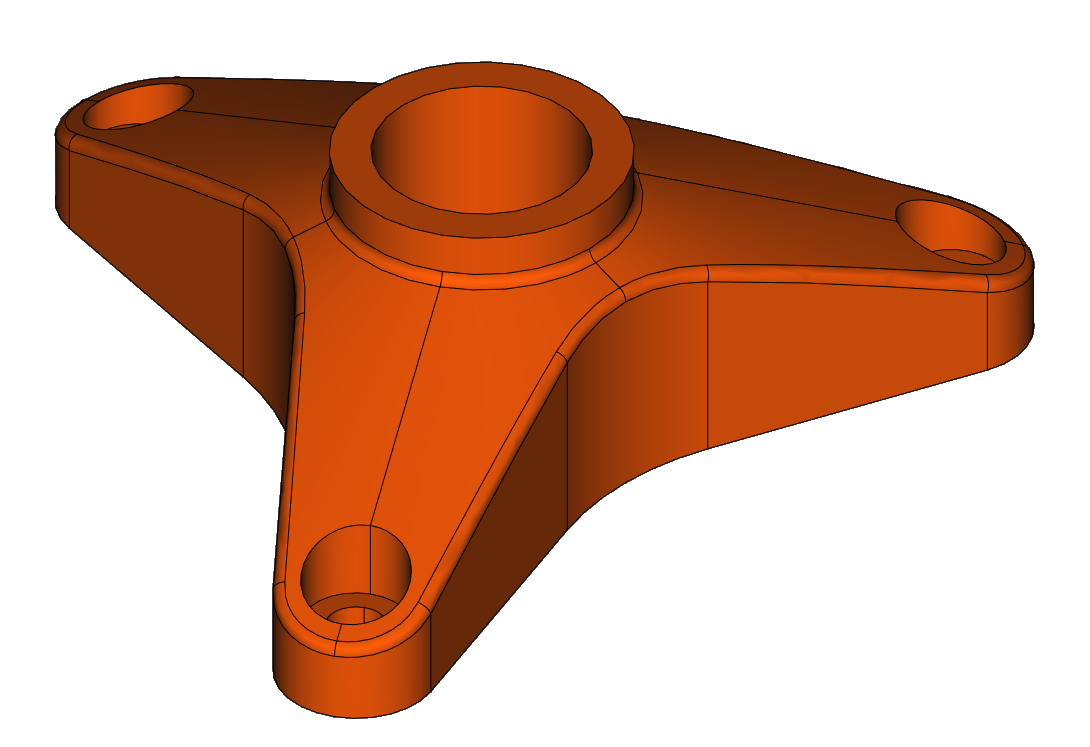

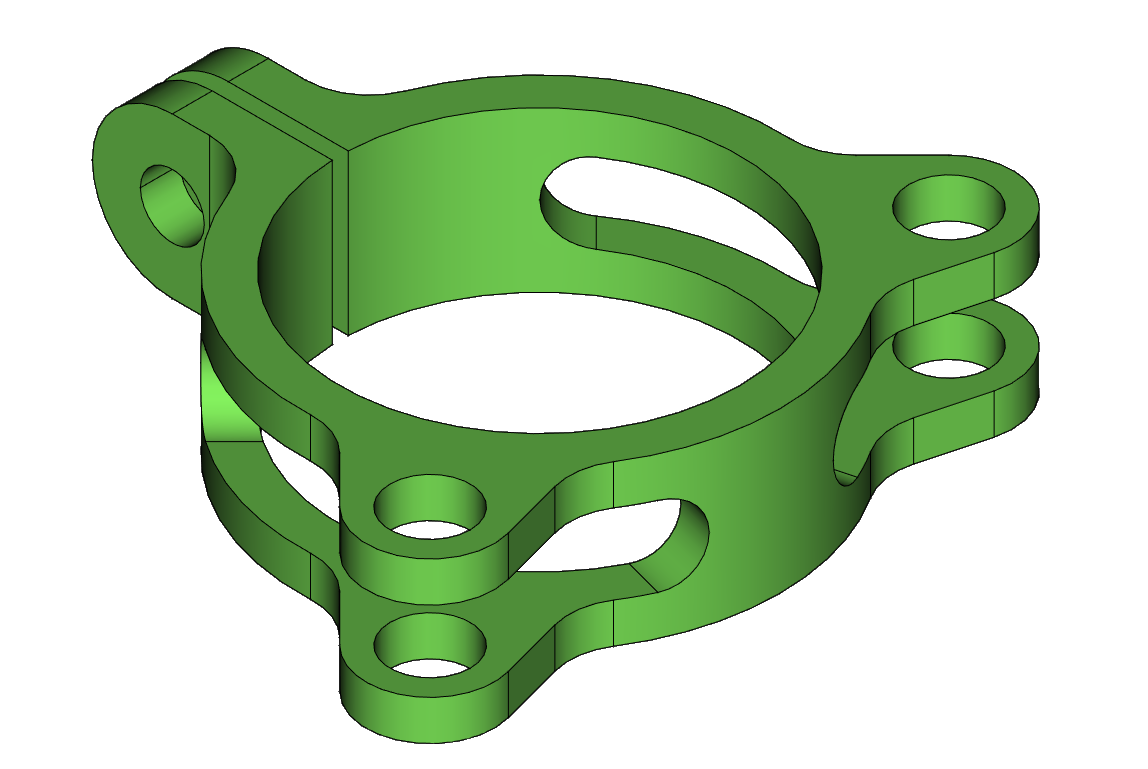

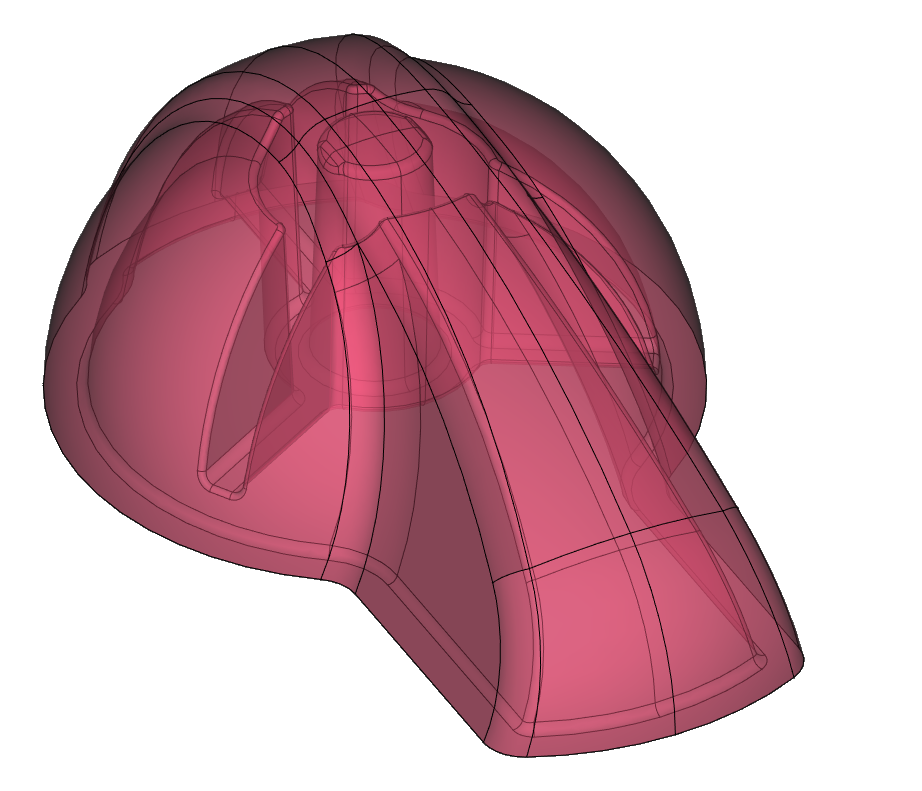

I like this one because it’s a good demonstration of how well FreeCAD can do solid modelling. This model didn’t require any hacky tricks to get good geometry. Dress up and thickness features just worked.

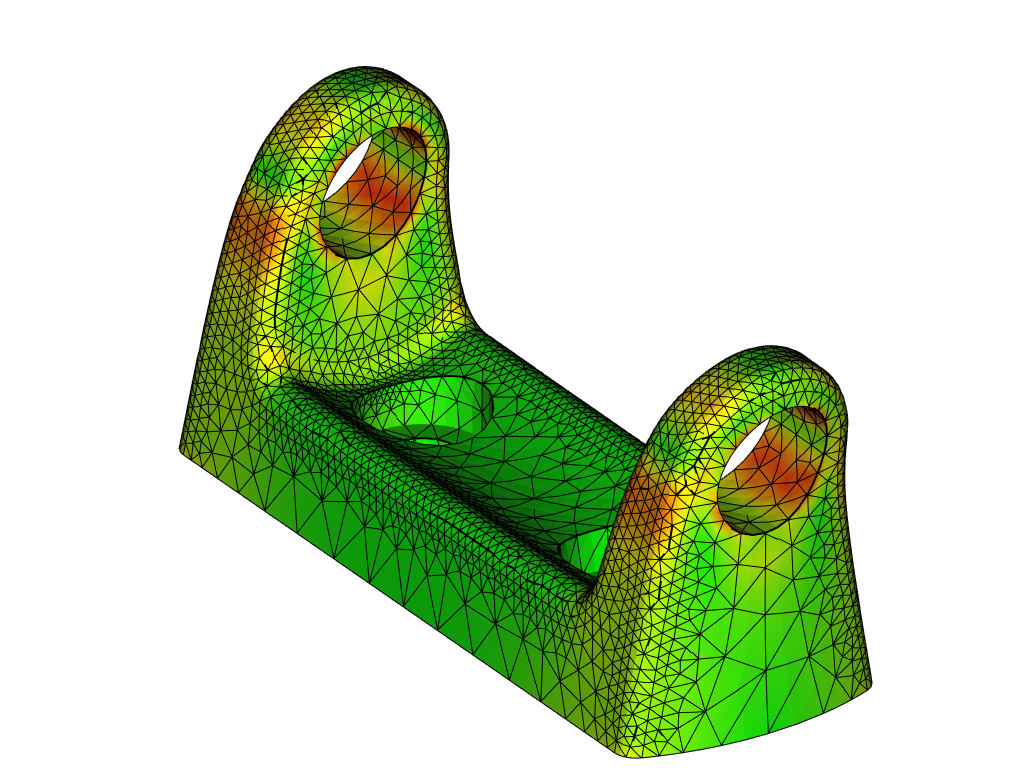

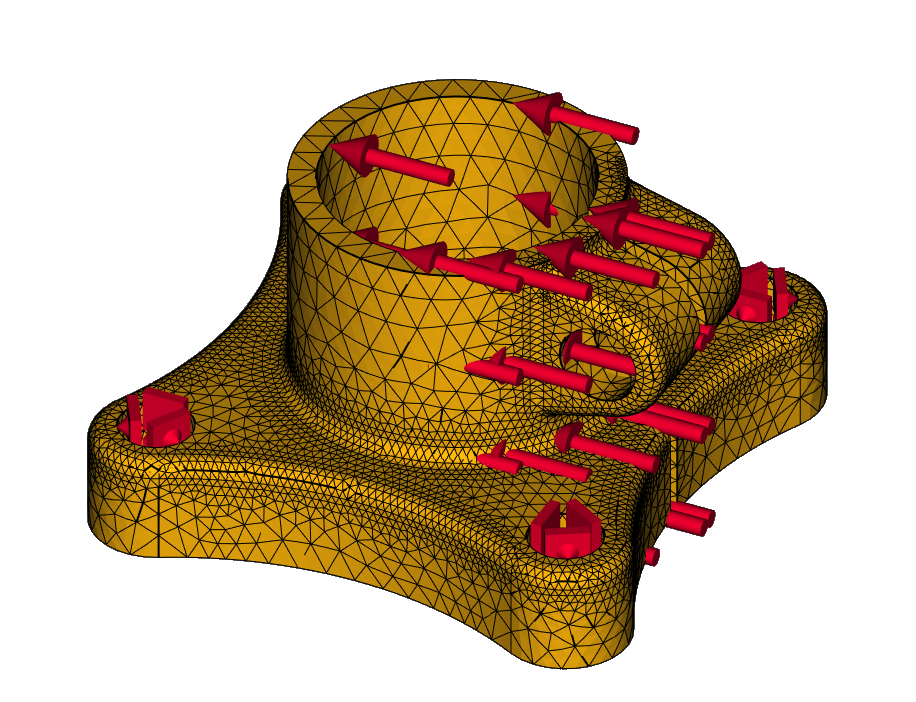

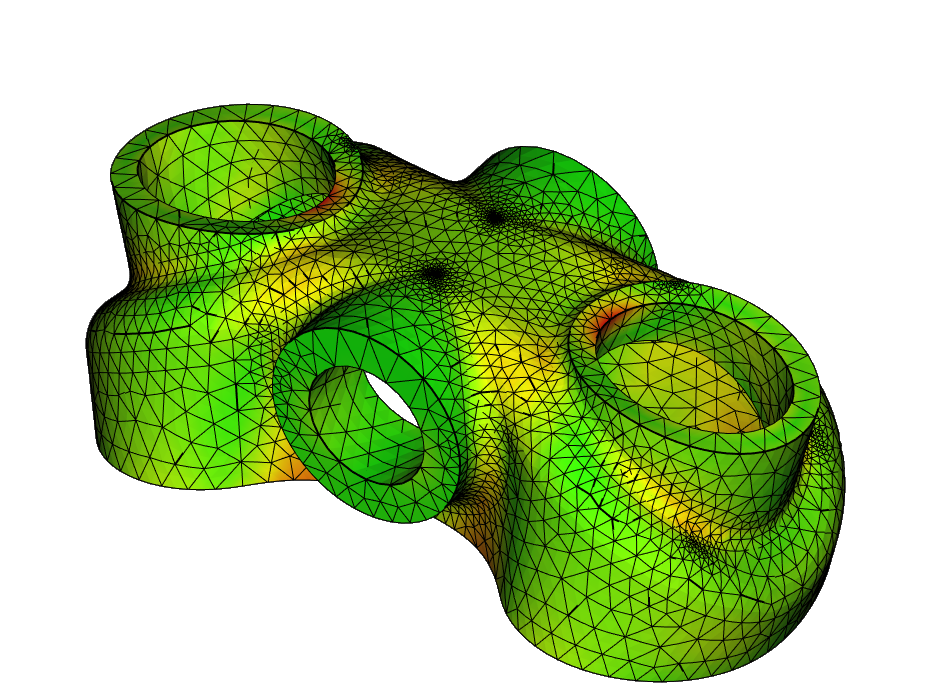

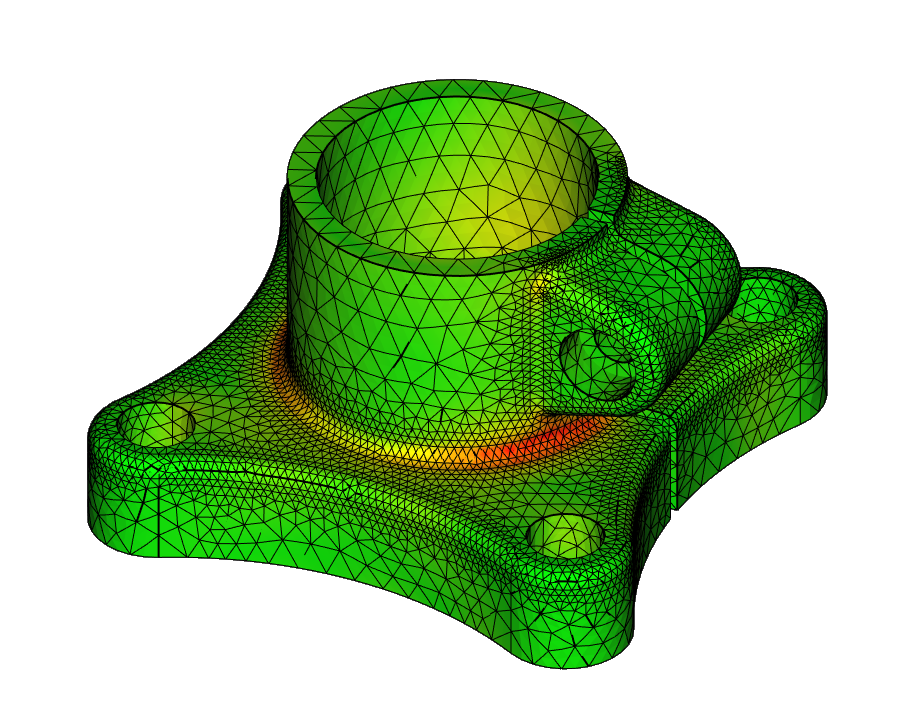

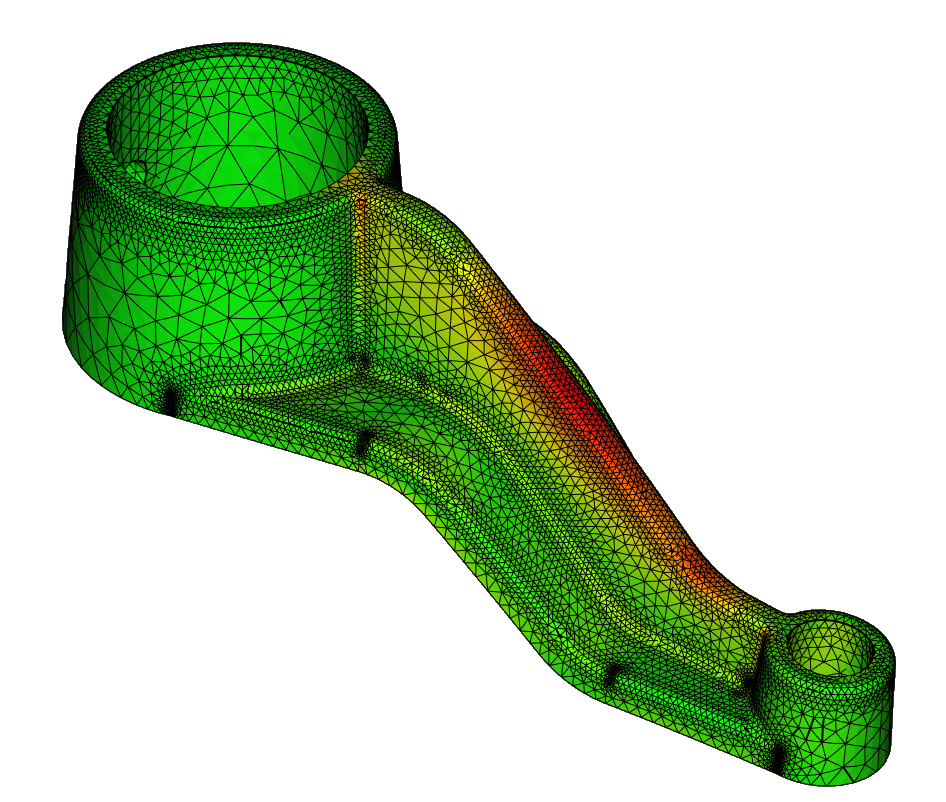

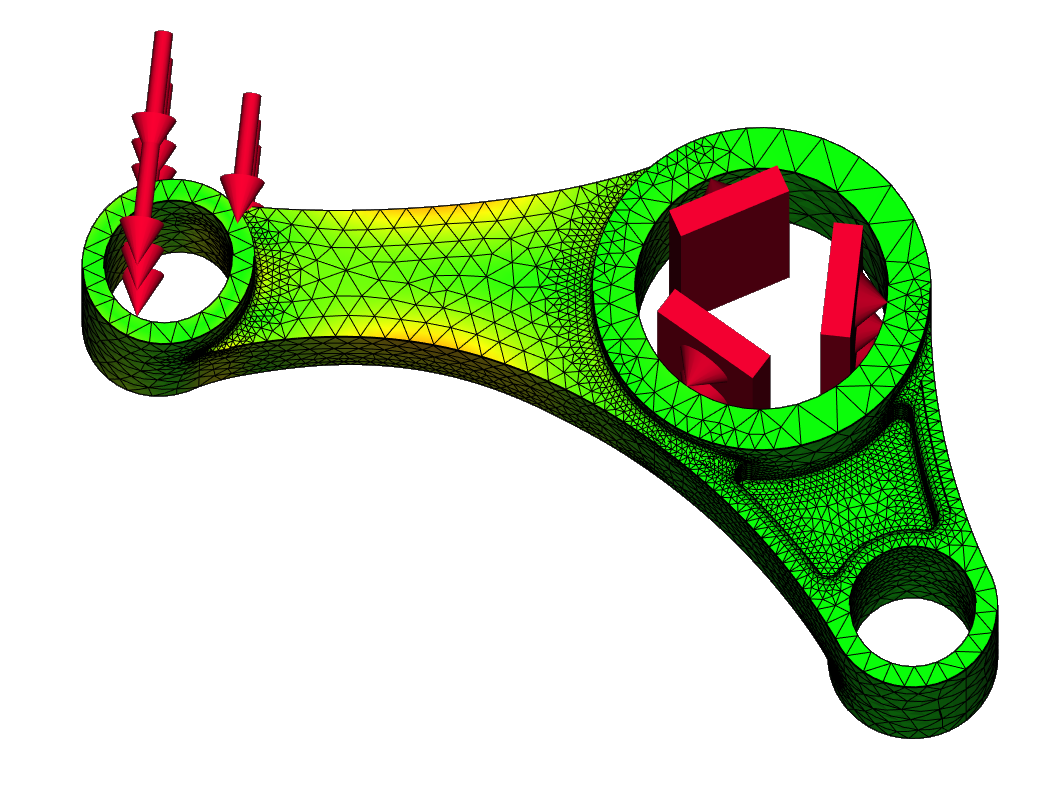

the challenges usually have a mechanical simulation component. You’re meant to use SolidWorks’ simulation workflow for this, and then one one the challenge question answers is the factor of safety of the part. Not knowing the exact material parameters or failure criteria that SW assumes for basic sims, I chose to just use this part of the challenge as FEM workbench practice. This was overall a good experience. I only managed to run out of RAM a few times.
It’s interesting to see the challenges get easier in recent years. The creators approach to creating them has sort of changed from “here’s a model with several features for you to figure out over ~0.5hour” to “you should be able to hack this out in a matter of a few minutes”
