at {dayjob}, I ended up in charge of a small fleet of Dremel Desktop FDm 3D printers. These machines, by default, work with a proprietary size of filament spool with a built in RFID chip. I decided to switch to using a generic PLa filament to save on material costs and sourcing headaches. Unfortunately, the new style of spool didn’t fit into the built in compartment in the printers’ enclosure. To get around this problem, I designed and build a set of spool-holders.
My design requirements for this project were as follows:

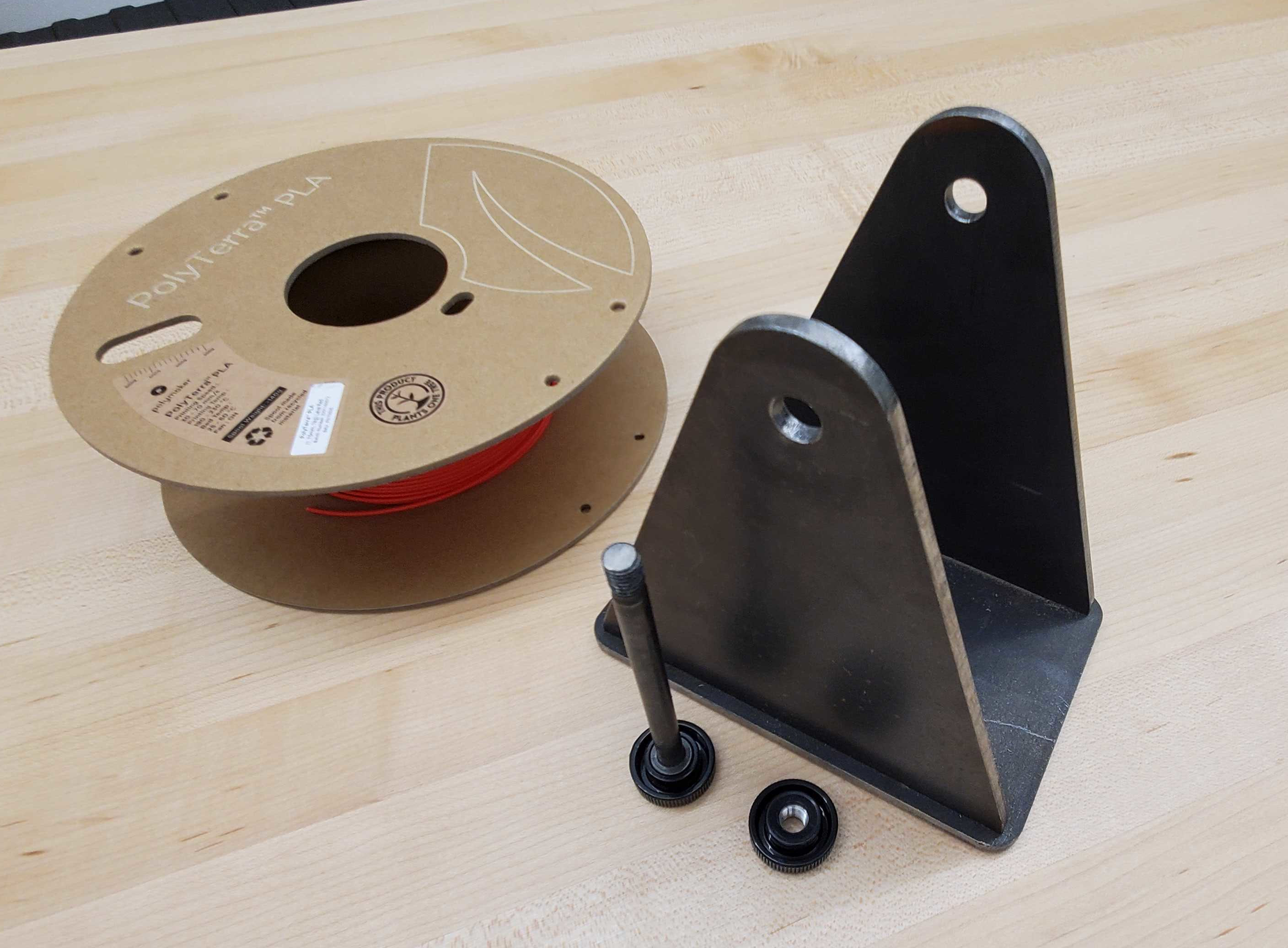

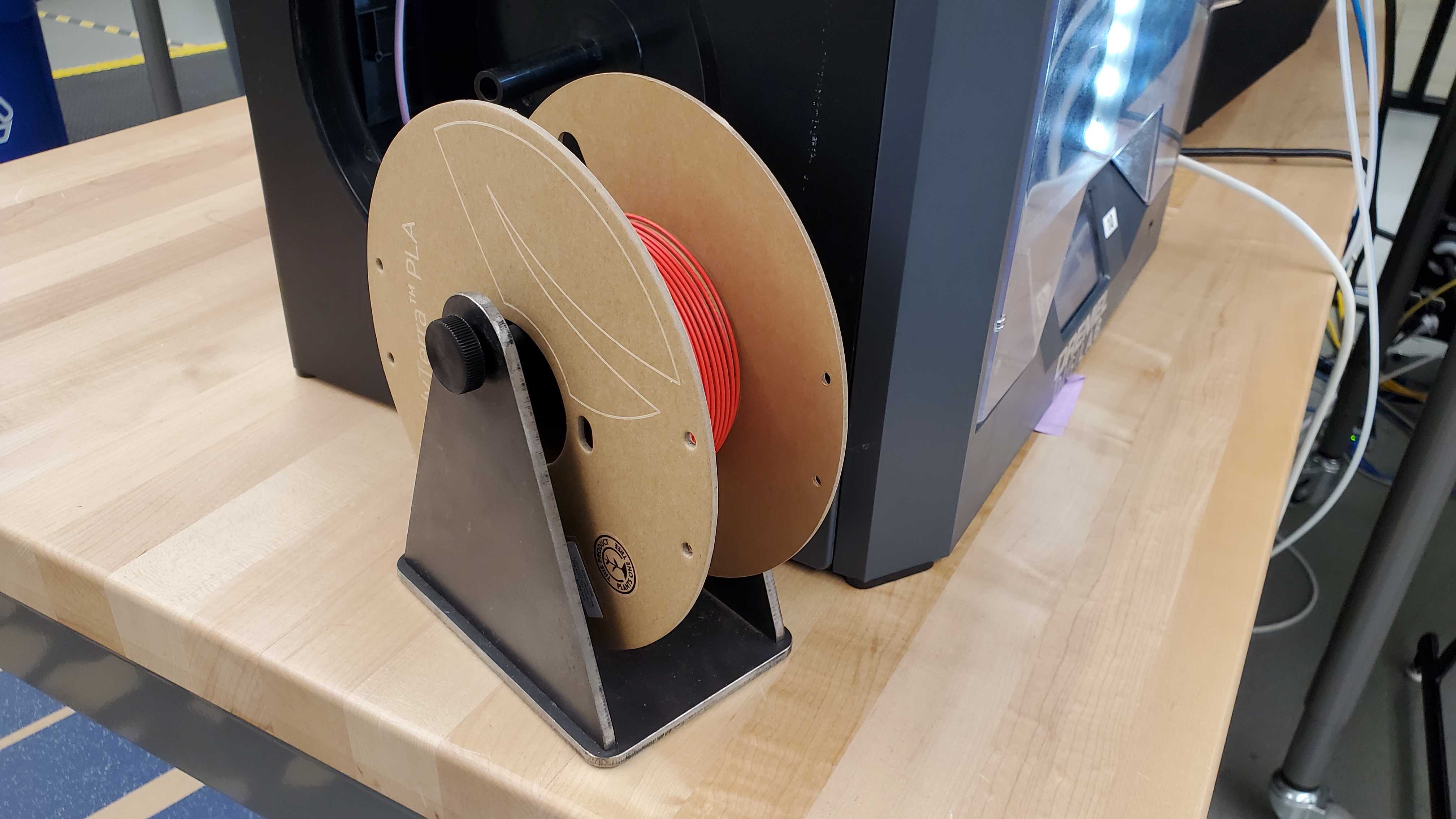

Here’s what I came up with:

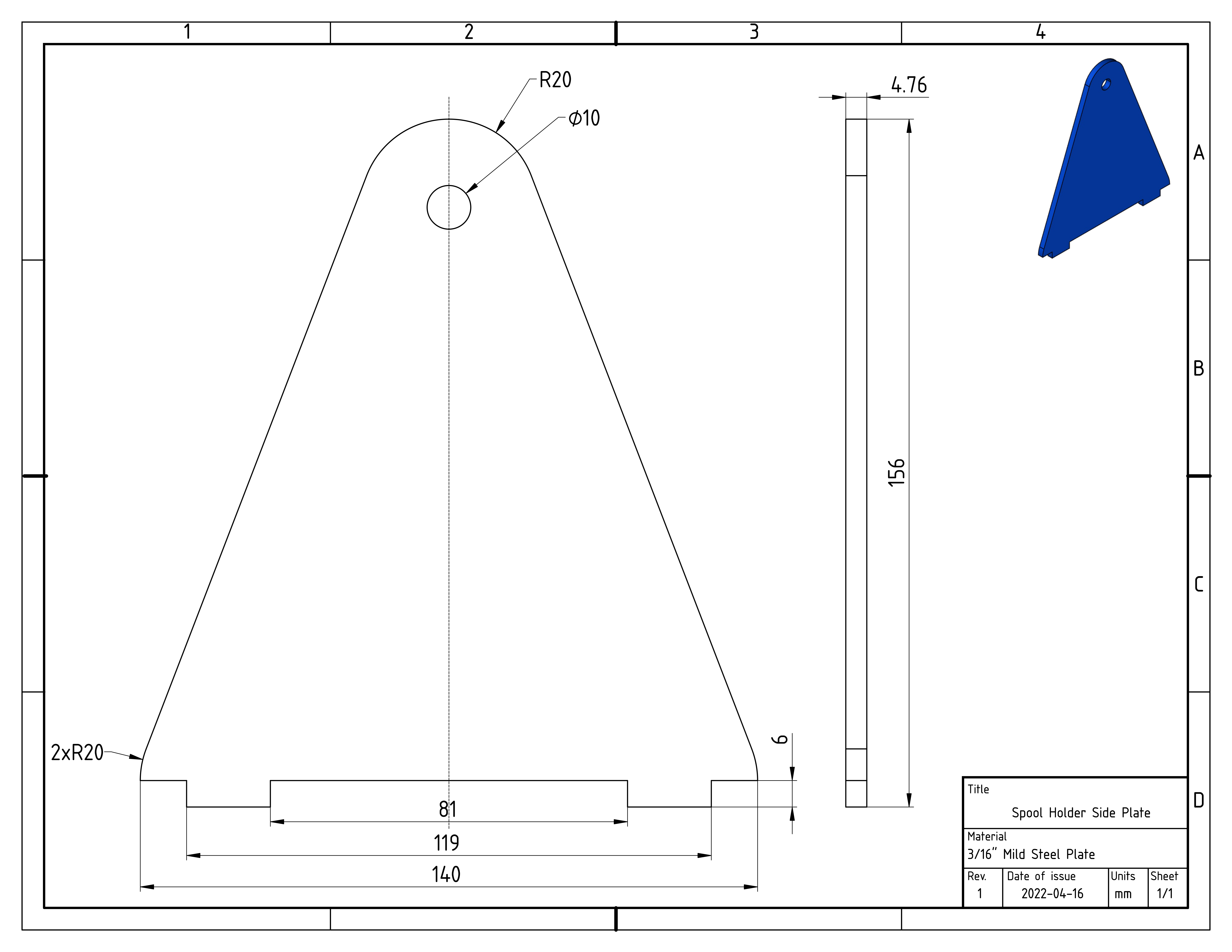

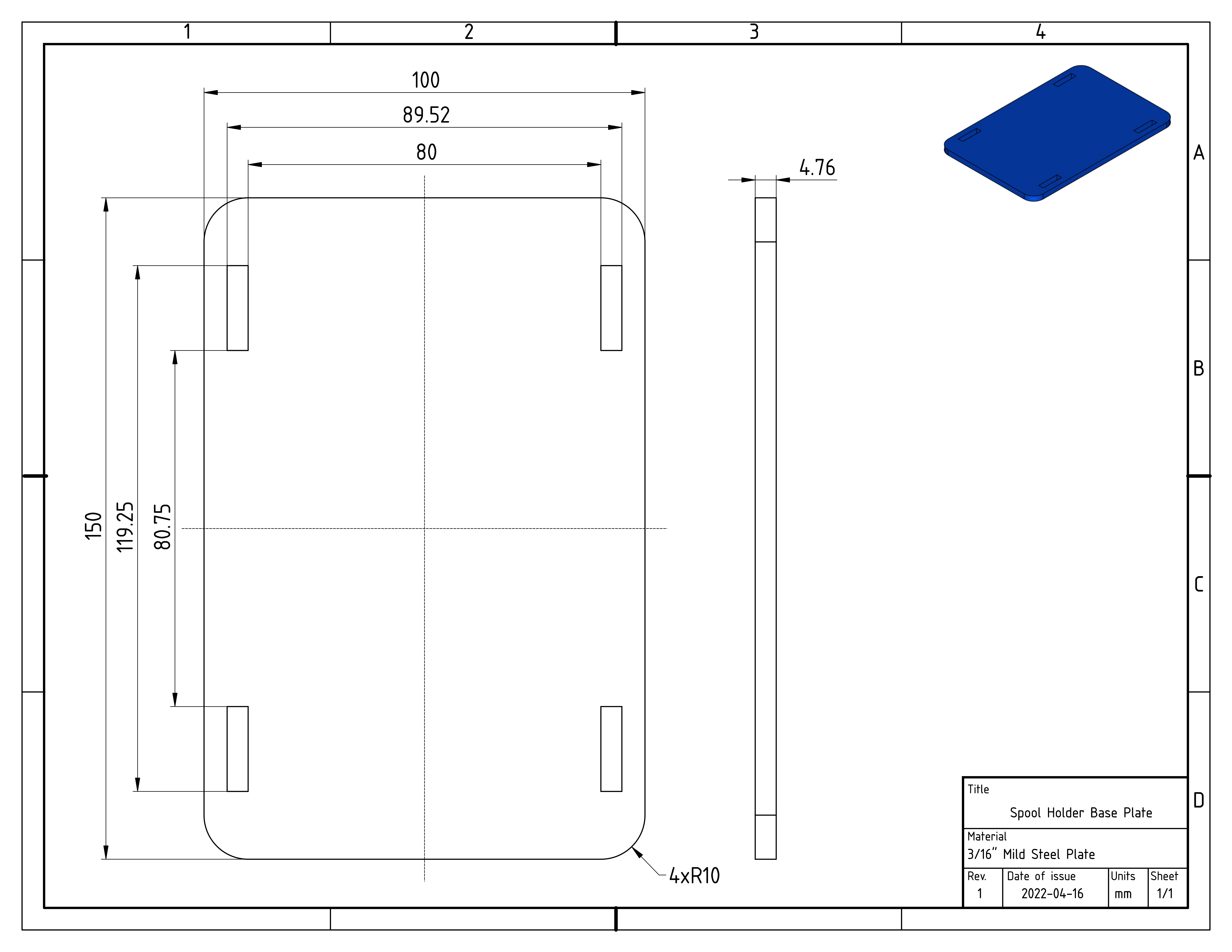

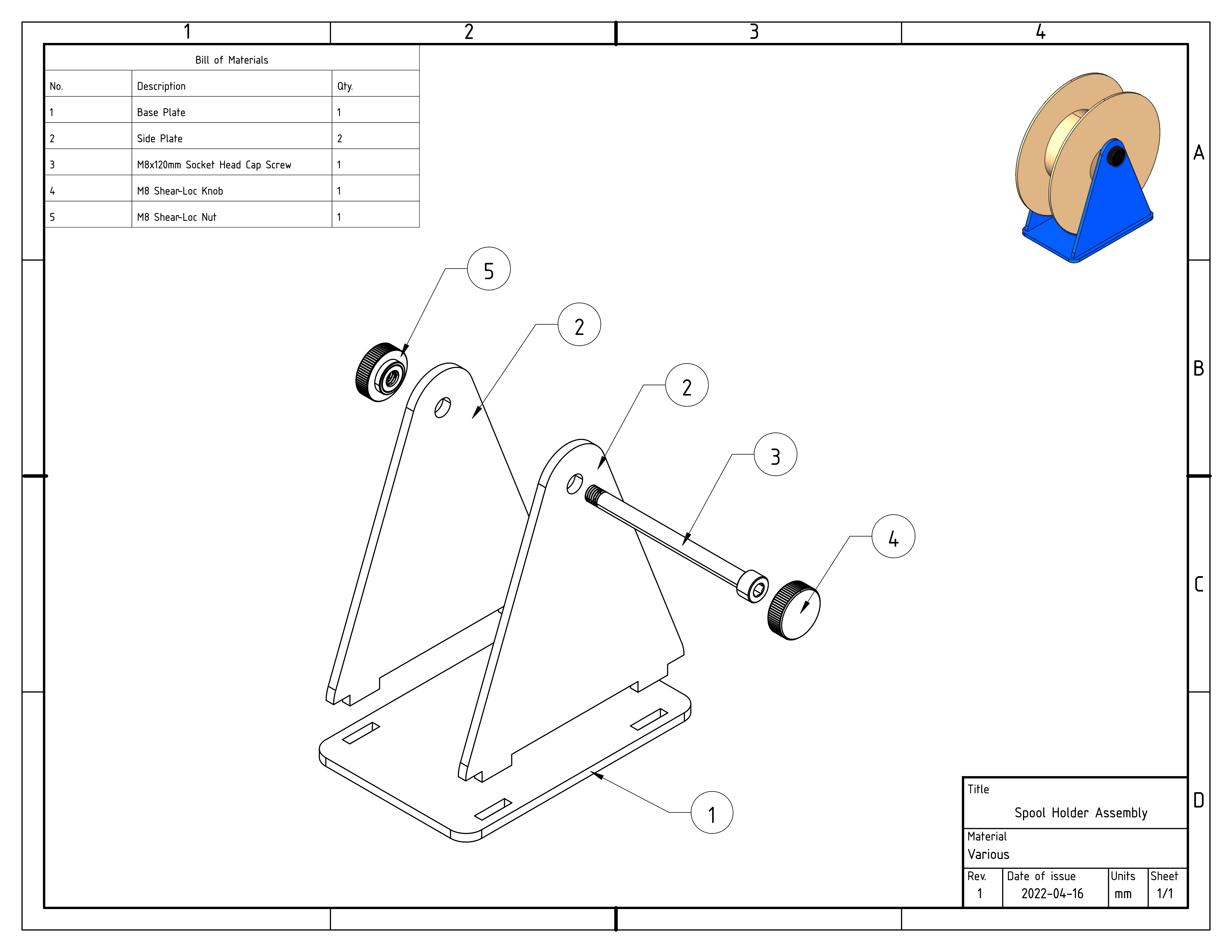

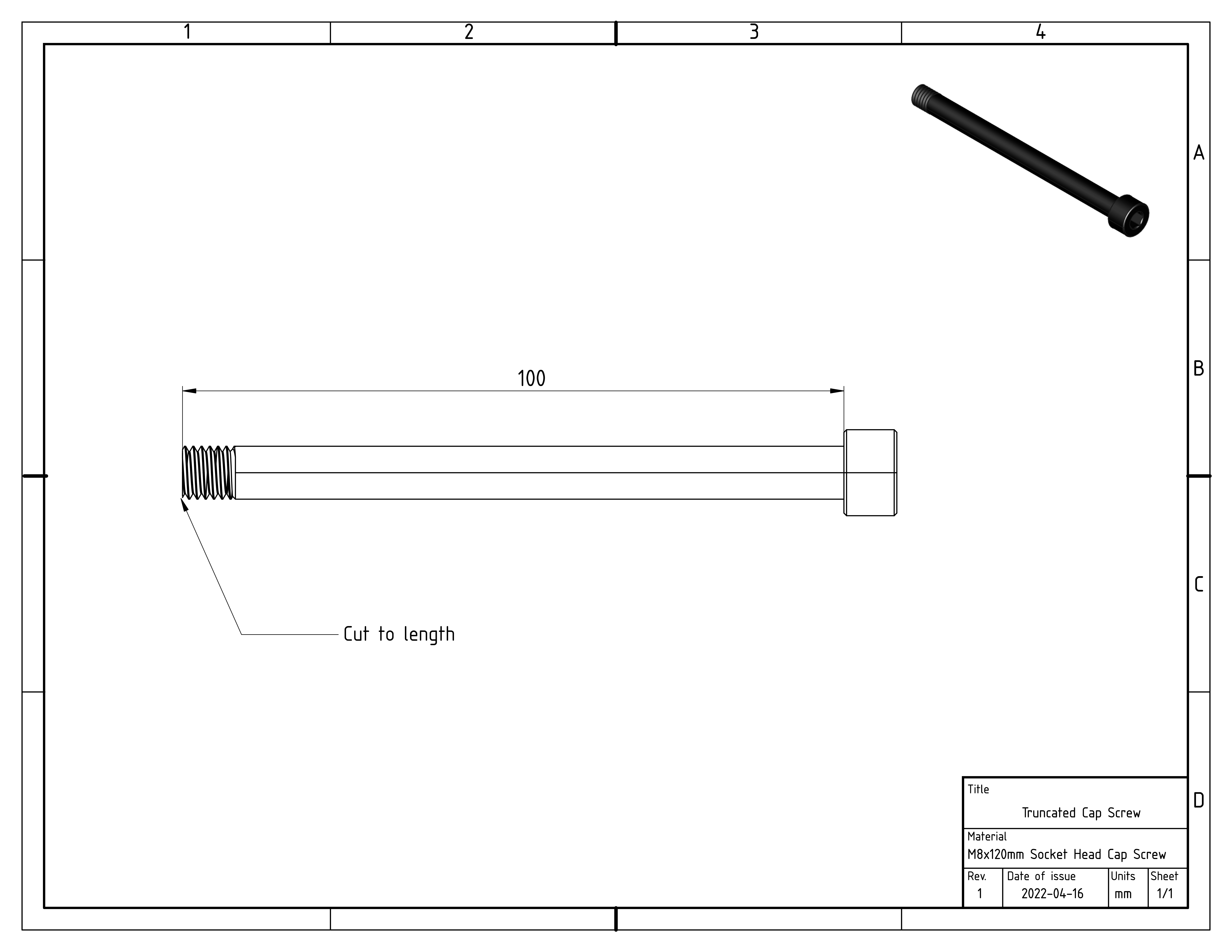

If you’re interested in using this design or taking inspiration from it, feel free. A bill of matrerials and some drawings are available below, or grab all of my design files from github.
Description | Vendor | Part # | Unit Cost | Unit QTY | QTY | Sub Total |
---|---|---|---|---|---|---|
Acetal Screw-Head Mount Knobs | McMaster-Carr | 91175A066 | $8.52 | 25 | 1 | $0.34 |
Reinforced Plastic Knurled-Head Thumb Nut | McMaster-Carr | 93886A270 | $13.03 | 10 | 1 | $1.30 |
Alloy Steel Socket Head Screw | McMaster-Carr | 91290A472 | $5.16 | 5 | 1 | $1.03 |
Steel Sheet 12x12x0.188” | Metal Supermarkets | x | $18.83 | 1 | 0.75 | $14.12 |
Total: | $16.80 |
